Porcelain Electrical Transformer Bushing 12-24-36KV With Lightning Conductor Rod

Brand Name : YC

Model Number : DIN 12-24-36KV/1000-3150A

Certification : ISO 9001, ISO 14001, OHSAS 18001

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : Full Set Porcelain Electrical Transformer Bushing with Lightning Conductor

Condition : Power transformer

Thread : Standard

Dimensions : Customer required

Model : DIN ANSI GB standard

Usage : Outdoor & Indoor

Application : Low / high voltage

Surface treatment : As per customer specification or requirement

Contact Now

Full Set Porcelain Electrical Transformer Bushing with Lightning Conductor

Description

As a standard product we can offer both DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 40.5kV and up to 16000A with a wide variety of creepage distances to meet all environmental conditions.

Code

Type-voltage/current (KV/A)

Dimensions (mm)

Tank hole

Creepage Distance (mm)

Weight (kg)

YC.286.2531.1

12KV/630A

234

108

M20

Φ150

Φ140

180

Φ90

295

7.6

YC.286.2531.3

24KV/630A

309

108

M20

Φ165

Φ140

180

155

Φ90

445

9.5

YC.286.2531.5

36KV/630A

414

108

M20

Φ180

Φ140

200

220

Φ90

635

12.6

Features

Name	Full Set Porcelain Electrical Transformer Bushing with Lightning Conductor
Item	Power Transformer Bushings
Product specification	Brass components for LV & HV transformer
Length / Size	We provide customized size & follow clients idea and designs
Model	ANSI EN DIN standard
Website	www.hbyachen.com
Sample	Approved
Application	Electrical energy, electrical installation, power transmission and distribution
Material	Brass, stainless steel, copper, aluminium, or contact us if your required material is not list above
Professional	We are profession in producing transformer bushings more than 20 years.

Note

Please let’s know the size, quality, material, grade or target price if it is special nonstandard products and send the drawing and samples to us.

Advantage

Comparative price
High precision quality
On time deliver
Technical support

Features

Optimum performance
Light weight
High durability

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 piece.

Q2: Do you offer sample?

A: Yes, we can provide you a sample.

Q3: What is your payment term?

A: 100% TT in advance.

Q4: What is your lead time?

A: 3-10 work days after order confirmed. Urgent need please discuss with us to find a way out!

Q5: Are you a manufacturer or a trader?

A: We are a manufacturer and all the items mentioned are made by ourselves. We have our own sales team to provide you the best export service too.

Q6: Can you make the packing and logo as customer request?

A: Yes we can.

Product picture

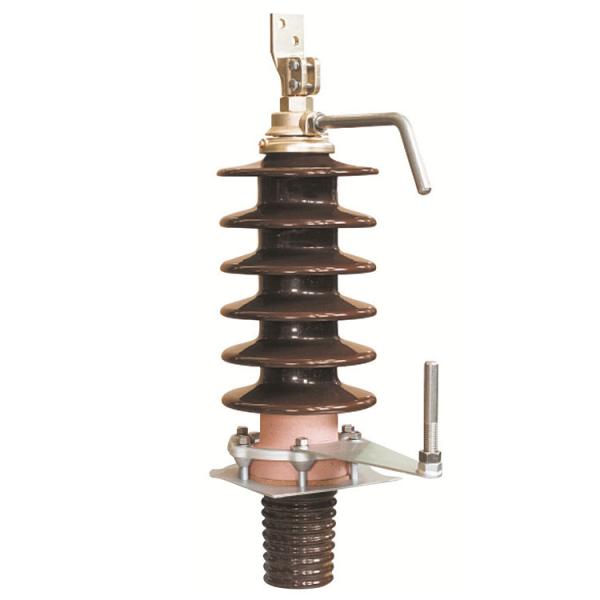

Porcelain Electrical Transformer Bushing 12-24-36KV With Lightning Conductor Rod
